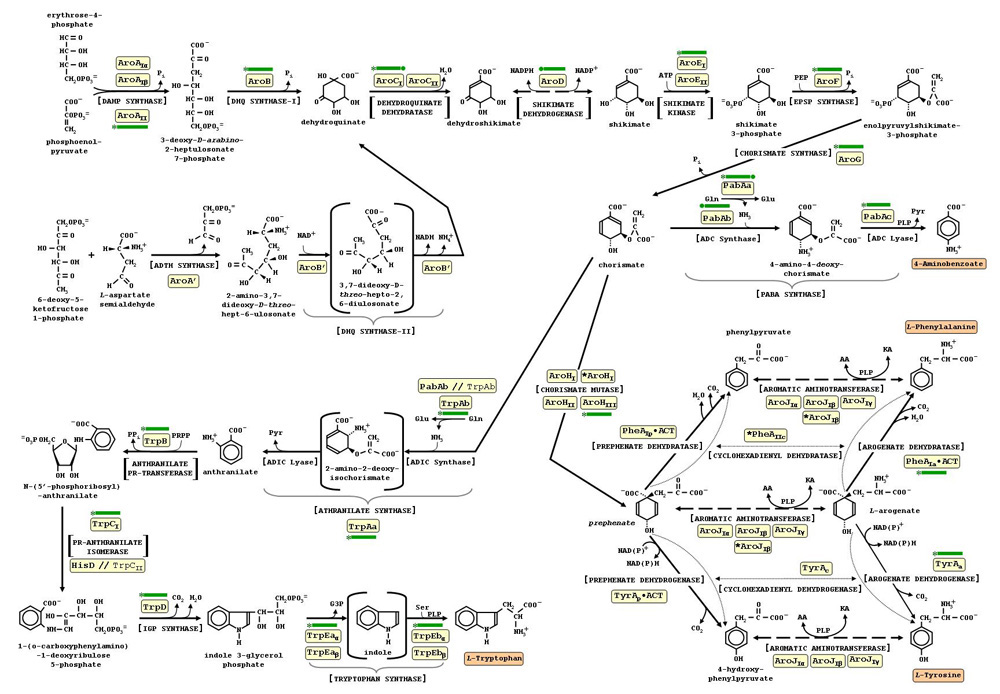

Aromatic Biosynthetic Pathways
Aromatic aminotransferase Arogenate dehydrogenase Cyclohexadienyl dehydrogenase Prephenate dehydrogenase Aromatic aminotransferase Aromatic aminotransferase Arogenate Dehydratase Cyclohexadienyl dehydratase Aromatic aminotransferase Aromatic aminotransferase Prephenate dehydratase Chorismate mutase Tryptophan synthase (beta subunit) Tryptophan synthase (alpha subunit) Tryptophan synthase (alpha subunit) Indoleglycerol-phosphate synthase PR-5-amino-1-PR-4-imidazole carboxamide/PR-anthranilate isomerasee Phosphoribosyl-anthranilate isomerase Phosphoribosyl-anthranilate isomerase Anthranilate synthase (beta subunit) PABA synthase (beta subunit) Anthranilate synthase (alpha subunit) Anthranilate Phosphoribosyl-transferase Anthranilate Phosphoribosyl-transferase Dehydroquinate synthase II Dehydroquinate synthase II 2-amino-3,7-dideoxy-D-threo-hept-6-ulosonate (ADTH) synthase 2-amino-3,7-dideoxy-D-threo-hept-6-ulosonate (ADTH) synthase PABA synthase (gamma subunit); 4-amino-4-deoxy-chorismate lyase PABA synthase (beta subunit) PABA synthase (alpha subunit) Chorismate synthase Enolpyruvylshikimate-3-phosphate (EPSP) synthase Shikimate kinase Shikimate dehydrogenase Dehydroquinase Dehydroquinase Dehydroquinate synthase I Dehydroquinate synthase I 2-keto-3-deoxy-D-arabino-heptulosonate 7-phosphate (DAHP) synthase 2-keto-3-deoxy-D-arabino-heptulosonate 7-phosphate (DAHP) synthase 2-keto-3-deoxy-D-arabino-heptulosonate 7-phosphate (DAHP) synthase
